Technical Sheet:
Fire tube and thick tube band within the cladding and passing through the steam chamber where heat eliminates any humidity. Two smokeboxes – upper and lower – can be inspected for easy cleaning. Insulation: ceramic fibre for the smokebox, long-fibre glass wool for the cladding, all covered with AISI 304 stainless-steel sheet metal - completely free of asbestos.
The boiler is delivered in the monoblock version complete with:
- Taps and fittings by the best brands according to regulations
- Level regulator with electronic probe
- Burner block, minimum level with electronic probes
- Pressure switch for burner operation
- Electric feed pump
- Electrical control panel complete with connection to the various equipment
- Absence of external oven, total yield 90% and beyond with heat recovery
- Steam concentration 0.97
- Testing and exemption at construction site according to ISPSEL standards
- Total exemption from ISPSEL checks – fire brigade – licensed driver assistance
- Compatible with user-operated machinery, replacing electric steam generators with notable energy savings
This steam generator may be supplied complete with forced-air burner (methane, LPG, diesel).

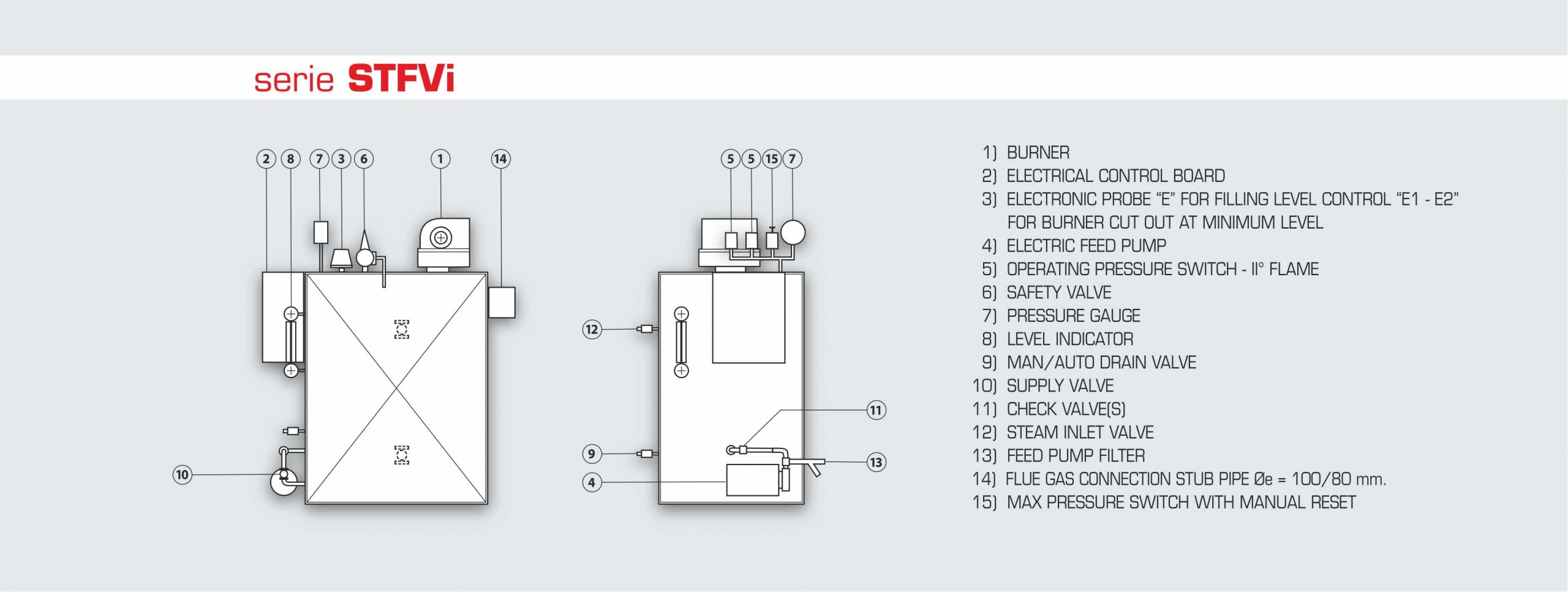

Component breakdown:
- Burner
- Electrical control panel
- Level regulator
- Electric feed pump
- Burner block electronic probes
- Pressure switch
- Safety valve
- Manometer
- Level indicator
- Discharge valve
- Feed valve
- Check valve
- Steam inlet valve
- Pump filter
- Chimney attachment
MAS reserves the right to make any modifications without prior notice.
